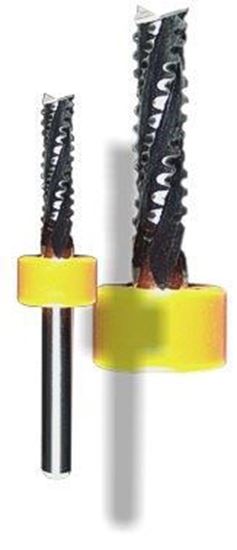

PreciseBits RCC08 Chip Breaker Router Bit

Overview

- A great choice for engraving, countersinking and scoring

These miniature router bits are optimized for cutting composite materials such as PCB substrates, G10, carbon fiber, and reconstituted minerals. The fishtail point eliminates backside breakout and splintering. The Chip-breaker grind combines aggressive cutting action with high flute volume for enhanced swarf removal. This type of router bit has a slightly higher cutting rate when compared with the RDC08 series whereas the RCD08 typically has a slightly better surface finish.

• Chip-breaker flute grind, 1/8" (3.18 mm) shank, fish-tail point
• Length - 1.5" ±0.010"
• Diameter - nominal +0.000", -0.002"
• Max runout (TIR) - < 0.0005"
• Runout (TIR): +-0.0002"
• Max. depth of cut - EFL varies by diameter ±0.005"
• Anticipated Life: 4,000 linear inches (FR4 epoxy glass)
• Material: solid sub-micrograin carbide
• Ring Set - 0.800" ±0.002"
• Operating RPM: CNC certified operation 20k RPM to 60k RPM

Applications

• De-paneling printed circuit boards
• Contour cutting internal pockets in PCB substrates
• Shaping reconstituted minerals (high mineral to resin ratio
• Cutting sheet composites

Bit sizes
