Fractional (inch) Drill Bits

Fractional (Inch) Drill Bits

Be the first to review this product

Manufacturer: PreciseBits

Please choose drill size *

$0.00

Qty:

Overview

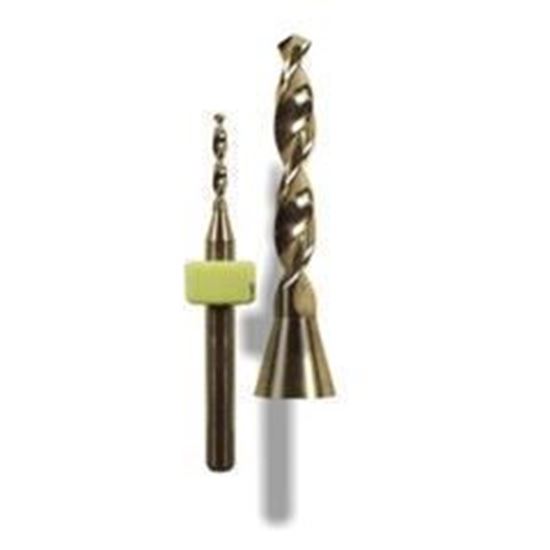

- PreciseBits Carbide Micro Drills - Fractional (Inch) Sizes

High quality carbide micro drill featuring a shallow point angle that minimizes backside breakout and splintering while the geometry and back tapered flutes virtually eliminate top surface splintering. The tip geometry produces shallow glue pockets for anchoring inlaid components.

A great choice for such applications such as drilling hardwoods, non-ferrous metals, inlay pockets for mother-of-pearl dots and drill printed circuit board substrates.

Specifications

Geometry - 2 flute, 1/8" shank, drill point
Length - 1.5" ±0.010"
Diameter - nominal +0.000, -0.0005"
Shank Diameter - 0.1248"
Total Included Angle:
- dia ≤ 0.100" (2.54mm) - 135°
- dia > 0.101" (2.57mm) - 160°
Max Runout (TIR) - ±0.0002"
Drill Depth - Varies by diameter
Anticipated Life - 3,000 holes min in FR4 epoxy glass
Material - solid submicrograin carbide / stainless steel shank
Ring Set - 0.800" ±0.002"
Operating RPM - CNC certified operation 20k RPM to 100k RPM

Bit sizes

Item	Description	Unit Price
1) PB-DC208-0315-040D	1/32" (0.0315", 0.800mm) * SHIPS AS DC208-M080-040D - 0.80mm drill bit	$2.48
2) PB-DC208-0625-040D	1/16" (0.0625", 1.587mm), 0.400" max DOC	$2.73
3) PB-DC208-0938-040D	3/32" (0.0938", 2.382mm), 0.400" max DOC, *#42 WIRE EQUIVALENT	$2.77
4) PB-DC208-1094-040D	7/64" (0.1094", 2.778mm), 0.400" max DOC	$2.76
5) PB-DC208-1250-040D	1/8" (0.1250", 3.175mm), 0.400" max DOC	$2.76
6) PB-DC208-1563-050D	5/32" (0.1563", 3.970mm), 0.500" max DOC	$6.47
7) PB-DC208-1875-050D	3/16" (0.1875", 4.762mm), 0.500" max DOC	$7.91
8) PB-DC208-2031-050D	13/64" (0.2031", 5.158mm), 0.500" max DOC *SHIPS AS 5.15mm	$9.36
9) PB-DC208-2188-050D	7/32" (0.2188", 5.557mm), 0.500" max DOC	$9.98
10) PB-DC208-2500-050D	1/4" (0.2500", 6.349mm), 0.500" max DOC * E - LETTER EQUIVALENT	$11.92
