Taig Depth Stop (1026)

Depth stop for work piece in chuck
Manufacturer: Taig

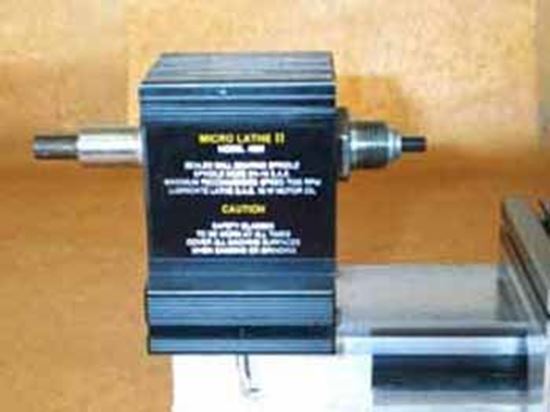

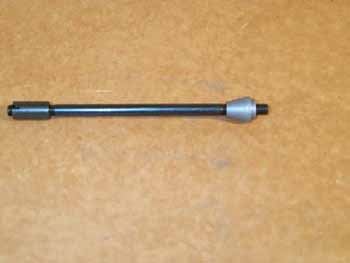

The Depth stop is mounted in the spindle and serves as a stop for the workpiece while using the 3 jaw or 4 jaw chuck. By using the Depth stop you are able to control the depth at which the workpiece is always stopped at. This allows you to chuck up numerous parts while maintaining the same machined depth each time. The stop can be adjusted by loosening the nut in the back and screwing the rod in or out and then tightening the nut again. The 30-degree collet like piece that fits in the spindle is threaded so that the stop rod can be adjusted for the desired depth.

Product tags
Customers who bought this item also bought

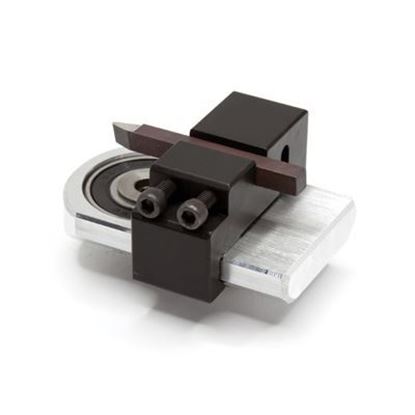

Taig radius turner (1210)

Radius Turner, swings Tool Bit in arc

Die holder for tailstock (1152)

Die holder for tailstock (will accept 13/16" and 1.00" button dies)

Taig ¾-16 to ER16 adapter (1045ER)

Use ER16 collets in your ¾-16 headstock

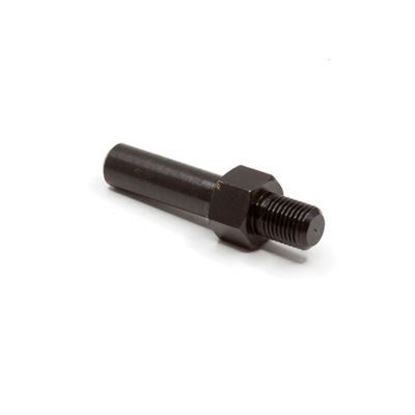

Taig drill chuck arbor (1140ER)
