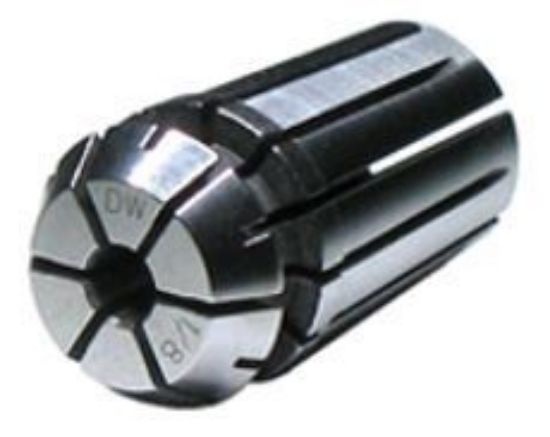

PreciseBits Dewalt 611 Individual Collets

- Convert your low cost router into a precision machine!

Be the first to review this product

Manufacturer: PreciseBits

Please Choose Collet *

Choose Precision Level *

(PG) Precison Grade
(UP) Ultra Precise [+$10.00]
(EP) Extreme Precision [+$17.00]

$0.00

Qty:

Overview

- Convert your low cost router into a precision machine!

Based on the ER20 Collet / Nut architecture, the Think Tinker family of precision collets and nuts was designed to bring the precision and flexibility of expensive high frequency spindles to low-cost, consumer and professional grade routers. Precision collets provide for lower noise, longer tool life, more accurate cutting and increased spindle bearing life. The PreciseBits collets nuts offer improved collet centering and shank clamping.

They feature a snap-together design and eccentric extraction ring that prevents collets from sticking or binding in the tapered spindle bore. Tool removal is consistently easy. The internal bore of each collet is preloaded to lightly grip the shank of a bit when it is inserted, preventing tools from falling out or shifting while the nut is being tightened. Please read Working with ER Nuts and Collets.

The Porter Cable is a popular handheld router that is a good choice for small router tables. The next tabs show the range of Porter Cable compatible precision collet kits. Please make your selection in the drop down box above. Compatible with: Dewalt 611 and Porter-Cable 450 routers.

These collets are now available in three grades: PG, UP, and EP. Each collet is individually tested for run out and graded.

These collets MUST be used with the PB-DEPG-0611-NUT which is included in the kits. They WILL NOT work with the original Dewalt nut.

Collet Specifications

Steel : SUJ 2
H.R.C. 45-52
Surface Roughness: Ra 0.5um
Balanced to G2.5 for 24,000 RPM's
Internal hole by boring machine.
EP (Extreme Precision) TIR < 0.0001" (0.01mm)
UP (Ultra Precision) TIR < 0.0002" (0.01mm)
PG (Precision Grade) TIR < 0.0004" (0.015mm)
Degree of concentricity exceeds the DIN standard. 100% inspected
must be used with Think Tinker DEPG-0611 nuts and spanners

Compatible with

Dewalt family: DWP611, 26200 (all configurations)
Porter-Cable family: 450 (all configurations)

PG Kits

Index	Item	Description	Unit Price
PG1	PB-DEPG-0611-3KIT	Precision Grade Collet Kit. Contains 3/16" PG collet, collet nut, spanner wrench and 118 ml of ColletCare.	$74.05
PG2	PB-DEPG-0611-43KIT	Precision Grade Collet Kit. Contains 1/4", 3/16" PG collets, collet nut, spanner wrench and 118 ml of ColletCare.	$98.00
PG3	PB-DEPG-0611-4KIT	Precision Grade Collet Kit. Contains 1/4" PG collet, collet nut, spanner wrench and 118 ml of ColletCare.	$74.05
PG4	PB-DEPG-0611-83KIT	Precision Grade Collet Kit. Contains 1/8", 3/16" PG collets, collet nut, spanner wrench and 118 ml of ColletCare.	$98.00
PG5	PB-DEPG-0611-843KIT	Precision Grade Collet Kit. Contains 1/8", 3/16", 1/4" PG collets, collet nut, spanner wrench and 118 ml of ColletCare.	$121.95
PG6	PB-DEPG-0611-84KIT	Precision Grade Collet Kit. Contains 1/8", 1/4" PG collets, collet nut, spanner wrench and 118 ml of ColletCare.	$83.95
PG7	PB-DEPG-0611-8KIT	Precision Grade Collet Kit. Contains 1/8" PG collets, collet nut, spanner wrench and 118 ml of ColletCare.	$74.05

UP Kits

Index	Item	Description	Unit Price
UP1	PB-DEUP-0611-3KIT	Ultra-Precision Grade Collet Kit. Contains 3/16" UP collet, collet nut, spanner wrench and 118 ml of ColletCare.	$84.05
UP2	PB-DEUP-0611-43KIT	Ultra-Precision Grade Collet Kit. Contains 1/4", 3/16" UP collets, collet nut, spanner wrench and 118 ml of ColletCare.	$118.00
UP3	PB-DEUP-0611-4KIT	Ultra-Precision Grade Collet Kit. Contains 1/4" UP collet, collet nut, spanner wrench and 118 ml of ColletCare.	$84.05
UP4	PB-DEUP-0611-83KIT	Ultra-Precision Grade Collet Kit. Contains 1/8", 3/16" UP collets, collet nut, spanner wrench and 118 ml of ColletCare.	$118.00
UP5	PB-DEUP-0611-843KIT	Ultra-Precision Grade Collet Kit. Contains 1/8", 3/16", 1/4" UP collets, collet nut, spanner wrench and 118 ml of ColletCare.	$151.95
UP6	PB-DEUP-0611-84KIT	Ultra-Precision Grade Collet Kit. Contains 1/8", 1/4" UP collets, collet nut, spanner wrench and 118 ml of ColletCare.	$118.00
UP7	PB-DEUP-0611-8KIT	Ultra-Precision Grade Collet Kit. Contains 1/8" UP collets, collet nut, spanner wrench and 118 ml of ColletCare.	$84.05

EP Kits

Index	Item	Description	Unit Price
EP1	PB-DEEP-0611-3KIT	Extreme-Precision Grade Collet Kit. Contains 3/16" EP collet, collet nut, spanner wrench and 118 ml of ColletCare.	$91.05
EP2	PB-DEEP-0611-43KIT	Extreme-Precision Grade Collet Kit. Contains 1/4", 3/16" EP collets, collet nut, spanner wrench and 118 ml of ColletCare.	$132.00
EP3	PB-DEEP-0611-4KIT	Extreme-Precision Grade Collet Kit. Contains 1/4" EP collet, collet nut, spanner wrench and 118 ml of ColletCare.	$91.05
EP4	PB-DEEP-0611-83KIT	Extreme-Precision Grade Collet Kit. Contains 1/8", 3/16" EP collets, collet nut, spanner wrench and 118 ml of ColletCare.	$132.00
EP5	PB-DEEP-0611-843KIT	Extreme-Precision Grade Collet Kit. Contains 1/8", 3/16", 1/4" EP collets, collet nut, spanner wrench and 118 ml of ColletCare.	$172.95
EP6	PB-DEEP-0611-84KIT	Extreme-Precision Grade Collet Kit. Contains 1/8", 1/4" EP collets, collet nut, spanner wrench and 118 ml of ColletCare.	$132.00
EP7	PB-DEEP-0611-8KIT	Extreme-Precision Grade Collet Kit. Contains 1/8" EP collets, collet nut, spanner wrench and 118 ml of ColletCare.	$91.05

Collets/Spanners

Index	Item	Description	Unit Price
CS1	PB-DEPG-0611-1250	1/8"(0.125") clamping, precision grade (PG) collet, TIR < 0.0004"	$23.95
CS2	PB-DEPG-0611-1875	3/16"(0.1875") clamping, precision grade (PG) collet, TIR < 0.0004"	$23.95
CS3	PB-DEPG-0611-2500	1/4"(0.250") clamping, precision grade (PG) collet, TIR < 0.0004"	$23.95
CS4	PB-DEPG-0611-M300	3.00mm clamping, precision grade (PG) collet, TIR < 0.0004"	$23.95
CS5	PB-DEUP-0611-1250	1/8" (0.125") clamping, ultra precision grade (UP) collet, TIR < 0.0004"	$33.95
CS6	PB-DEUP-0611-1875	3/16" (0.1875") clamping, ultra precision grade (UP) collet, TIR < 0.0004"	$33.95
CS7	PB-DEUP-0611-2500	1/4" (0.250") clamping, ultra precision grade (UP) collet TIR < 0.0002"	$33.95
CS8	PB-DEUP-0611-M300	3.00mm clamping, ultra precision grade (UP) collet, TIR < 0.0004"	$23.95
CS9	PB-DEEP-0611-1250	1/8" (0.125") clamping, extreme precision grade (EP) collet TIR < 0.0001"	$40.95
CS10	PB-DEEP-0611-1875	3/16" (0.1875") clamping, extreme precision grade (EP) collet TIR < 0.0001"	$40.95
CS11	PB-DEEP-0611-2500	1/4" (0.250") clamping, extreme precision grade (EP) collet TIR < 0.0001"	$40.95
CS12	PB-DEUP-0611-M300	3.00mm clamping, ultra precision grade (UP) collet, TIR < 0.0004"	$23.95
CS13	PB-DEPG-0611-NUT	Collet nut for Dewalt 611 compatible collets, balanced to G2.5%24K RPM	$19.95
CS14	PB-DEPG-0611-TLN	Talon Spanner wrench for DEPG-0611 collet nut	$12.95
CS15	PB-ERPG-ER16M-SPN	ER16M hand wrench for DEPG-0611 collet nut	$14.00
